            Welding positioner
            2019-03-18 21:32

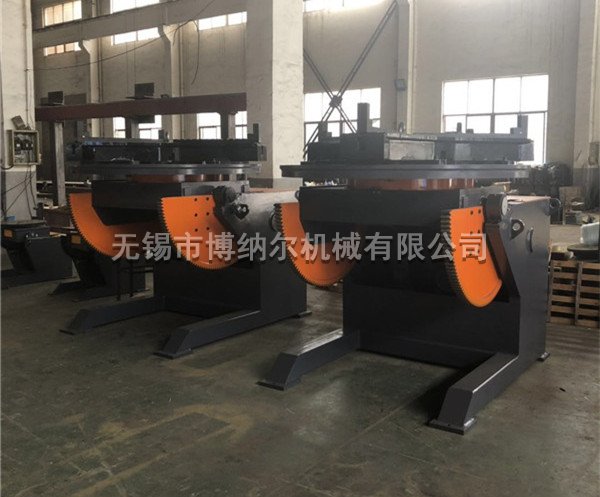

            Welding positioner
            Detailed description
            Welding positioner is a special equipment for welding flange and disc workpiece. It can make the workpiece rotate 360 degrees or turn over 0-90 degrees/120 degrees. It can be used in conjunction with the operator and arc welding power source, so that the workpiece can reach the ideal welding position. The rotating speed is steplessly regulated by frequency converter, and the operation is stable. The structural forms can be divided into single-seat tilting type, head-tail type, head-tail lifting type, L-type rotary tilting type, etc. Special requirements are designed separately.

            Specification type
            HB-1
            HB-3
            HB-6
            HB-10
            HB-20
            HB-30
            HB-50
            HB-80
            HB-100
            HB-150
            HB-200
            HB-300
            HB-500
            Rated load-bearing weight(kg)
            100
            300
            600
            1000
            2000
            3000
            5000
            8000
            10000
            15000
            20000
            30000
            50000
            Slewing speed (rpm)
            0.3-3
            0.15-1.5
            0.1-1
            0.05-0.5
            0.05-0.5
            0.05-0.5
            0.05-0.5
            0.05-0.5
            0.05-0.5
            0.05-0.5
            0.05-0.5
            0.04-0.4
            0.04-0.4
            Reverse Speed (rpm)
            手動(dòng)
            0.7
            1.0
            0.3
            0.2
            0.2
            0.2
            0.2
            0.2
            0.1
            0.1
            0.1
            Workbench diameter(mm)
            Φ400
            Φ600
            Φ1000
            Φ1200
            Φ1300
            Φ1400
            Φ1500
            Φ1800
            Φ2000
            Φ2500
            Φ2500
            Φ3000
            Φ4000
            Maximum eccentricity(mm)
            100
            100
            150
            150
            150
            200
            200
            200
            200
            200
            200
            200
            200
            Maximum barycenter distance(mm)
            150
            150
            200
            200
            250
            300
            300
            400
            400
            400
            630
            630
            800
            Turn-over angle of worktable (°)
            0-90
            0-90
            0-90
            0-105
            0-105
            0-120
            0-120
            0-120
            0-120
            0-120
            0-120
            0-120
            0-120
            Rotary motor power(kw)
            0.09
            0.18
            0.37
            0.75
            0.75
            1.5
            2.2
            2.2
            3
            3
            4
            7.5
            11
            Turn over motor power(kw)
            -
            -
            0.37
            0.75
            1.5
            1.5
            1.5
            3
            4
            5.5
            7.5
            11
            18.5
            90°Diameters of hourly rotation
            ≤600
            ≤1000
            ≤1200
            ≤1500
            ≤1500
            ≤1600
            ≤1800
            ≤2200
            ≤2500
            ≤3400
            ≤3400
            ≤4200
            ≤5700
            Speed regulation mode
            Rotary Frequency Conversion Speed Regulation
            Flip center distance
            370
            560
            720
            835
            832
            1037
            1185
            1100
            1550
            1800
            2000
            2600
            2250
            Outline size
            L(mm)
            750
            860
            1200
            1300
            1570
            1920
            2200
            2380
            2660
            2780
            2895
            4200
            5600
            H(mm)
            497
            700
            900
            1000
            1000
            1240
            1400
            1380
            1850
            2100
            2350
            3000
            3600
            W(mm)
            434
            668
            860
            1040
            1090
            1310
            1430
            1430
            1638
            1910
            1958
            3300
            4400
